Galvanized Steel Grating for Industrial Platforms with Custom 1-12m Length

Name: Galvanized Steel Grating for Industrial Platforms with Custom 112m Length
Brand: Gnee
Price: 1 USD

Quality Galvanized Steel Grating for Industrial Platforms with Custom 1-12m Length for sale

Surface treatment : Galvanized,Painting

Welding Way : Electrical forged welding, hand welding

Length : 1-12m

Color : Silver,Black

Application : Industrial platform, flooring and walkway traffic, steel structure

Bearing bar pitch : 15,20,25,30,33,35,38,40,50,60,80,90mm

Model Number : BS-10

Certification : ISO9001,SGS

MOQ : 10 square meter

Supply Ability : 100 ton/week

Delivery Time : 5-9 working days

Packaging Details : Packed in seaworthy,commonly bundled by bearing bar.

Bearing bar size : 25*3, 30*3,50X5mm

Brand Name : Gnee

Material : Steel,Q235

Contact Now

Professional Galvanized Steel Grating Support Custom 1 - 12m Length

Product Overview

Professional Customization Car Wash Drain Grating and Deck Grating

Steel Grating is designed to hold heavy loads with minimal weight. The gratings are made of bearing bars and cross bars. The bearing bar is the main load carrying bar which runs the same direction as span. The cross bars are connectors made from a strip or rolled bars which extend across or through the bearing bars. Cross bars are welded, forged or mechanically locked.

Technical Specifications

1. Bearing Bar (Load Bar) Specifications (mm):

Plain type and serrated type: 25 x 3 to 100 x 8
I-section type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2. Bearing Bar Pitch (center to center):

12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm (30, 40, 60mm recommended)
American standards available: 1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and more

3. Material:

Mild Steel (Low Carbon Steel) or Stainless Steel

4. Surface Treatment:

Untreated, Painting or Hot DIP Galvanizing

5. Steel Grating Standards:

China: YB/T4001-1998
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS

International Standards

Countries	National Standards for Grating	Materials	Galvanizing Standards
China	YB/T 4001.1-2007	GB 700-88	GB/T13912-2002
America	ANSI/NAAMM(MBG531-00)	ASTM(A36)	ASTM(A123)
Britain	BS4592-1995	BS4360(43A)	BS729
Australia	AS1657-1992	AS3679	AS1650

Common Specifications

Parameter	Specification
Name	Steel grating sidewalk drainage grating cover plate/drainage steel grating
Material	High-intensity carbon steel carbon and galvanized iron plate
Cross Bar Pitch	24-200mm (30,38,50,76,100mm recommended)
Bear Bar Pitch	1.5-90mm (20,30mm recommended)
Bearing Bar Thickness	3-5mm
Bearing Bar Distance	20-60mm
Cross Bars	5mm
Certification	ISO9001:2008

We can also accept custom order steel frame lattice size.

Product Images

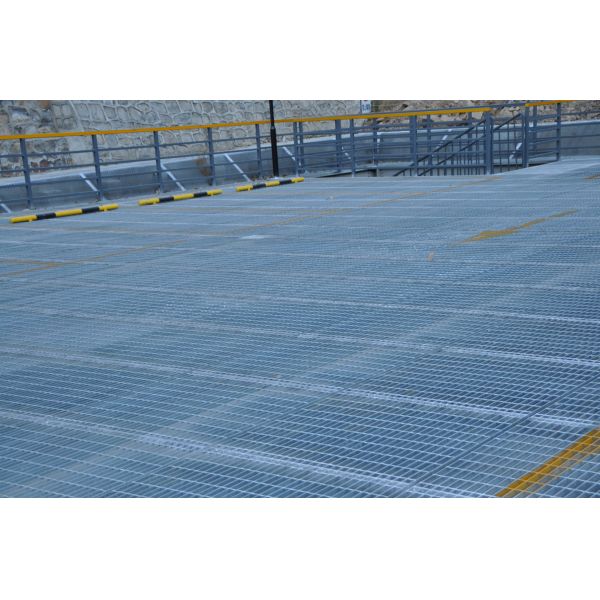

Galvanized Steel Grating for Industrial Platforms with Custom 1-12m Length

Applications

Flooring steel gratings
Stair treads
Sun shades
Drain covers
Security screen
Manhole covers
Mezzanine flooring
Earth mats
Shelving
Stanchions (hand rails)
Trench covers

Packing and Shipping

Service	Details
Packaging	Plastic film then pallet or according to the customer's requirements
Shipping	15 days for one 20ft container, 20 days for one 40ft container
